High-Efficiency Horizontal & Inclined Conveying

For Bulk Materials (High-Efficiency Horizontal / Inclined Continuous Conveying Equipment)

Belt conveyors constitute the most versatile, economical, and essential equipment for the industrial transport of bulk materials, facilitating the continuous, long-distance, and high-volume conveyance of lumpy, granular, and powdery substances. Our company offers a comprehensive range of belt conveyor systems—including fixed, mobile, and high-inclination sidewall models—which are widely utilized across industries such as cement, mining, coal, grain, ports, and metallurgy.

Covered Models:

• TD75 Belt Conveyor
• DY Mobile Belt Conveyor
• DJ Large-Inclination Belt Conveyor

I. Working Principle

A motor drives the drive drum via a reducer, utilizing the friction between the drum and the conveyor belt to propel the belt in continuous motion. Material enters through the feed inlet, lands on the belt, and is transported along with the belt to the discharge point, where it is unloaded. Idlers support both the belt and the material, ensuring smooth operation, while a tensioning device maintains appropriate belt tension to prevent slippage.

II. Structure

1. Conveyor Belt (Rubber / Plastic)
2. Drive Unit (Motor, Reducer, Coupling, Pulley)

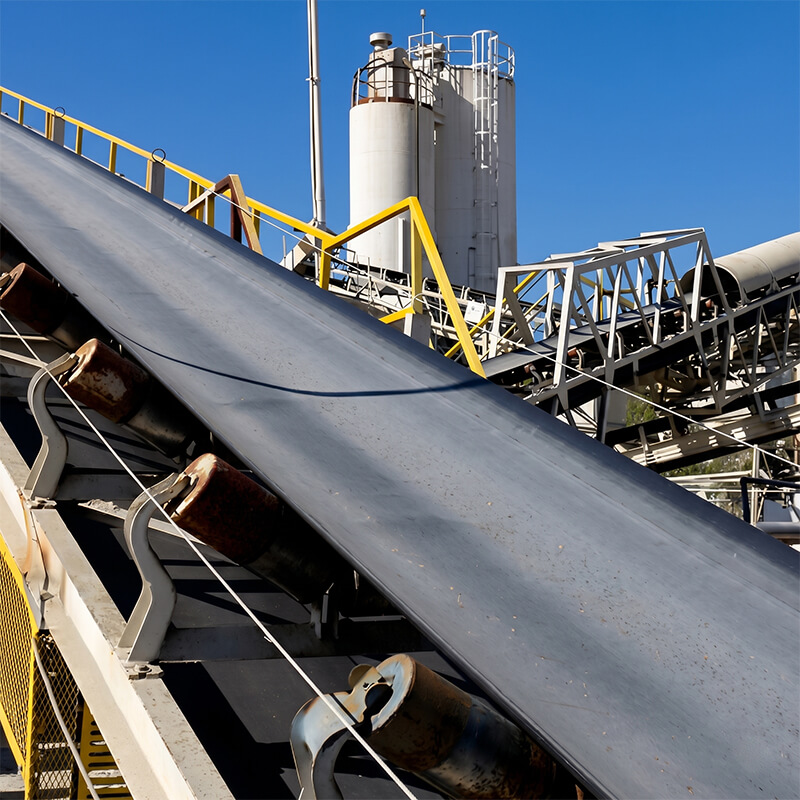

3. Idlers (Troughing, Flat, Self-aligning, Impact)
4. Pulleys (Drive, Tail/Return)
5. Take-up Device (Screw / Gravity / Carriage-type)
6. Frame & Supports (Main Frame, Support Stands, Head & Tail Frames)
7. Cleaners & Chutes (Belt Cleaners, Discharge Chutes, Skirting/Guide Chutes)
8. Safety Parts (Backstops, Brakes, Safety Guards)

III. Features & Advantages

1. Large Conveying Capacity: Capable of handling high volumes over long distances with continuous and stable operation.
2. Low Power Consumption: Features low operating resistance; energy consumption is only 30%–60% of that of other conveying equipment.
3. Flexible Layout: Offers flexible configuration options, allowing for horizontal, inclined, curved, elevated, or pit-based arrangements.
4. Stable & Low Noise: Operates smoothly with minimal noise; free from impact or jamming, making it ideal for continuous production lines.
5. Effective Sealing & Environmental Protection: Features excellent sealing capabilities; can be fitted with dust covers to prevent dust dispersion.
6. Long Service Life: Designed for longevity, with durable and easily replaceable belts, idlers, and pulleys, resulting in low maintenance costs.
7. Easy Operation & Maintenance: Simple to operate and maintain, featuring few wear parts and convenient access for inspection and repair.
8. Wide Range of Applications: Versatile enough to convey a broad variety of materials, including coal, ore, sand and gravel, grain, cement, chemical raw materials, and more.

IV. Detailed Breakdown by Model

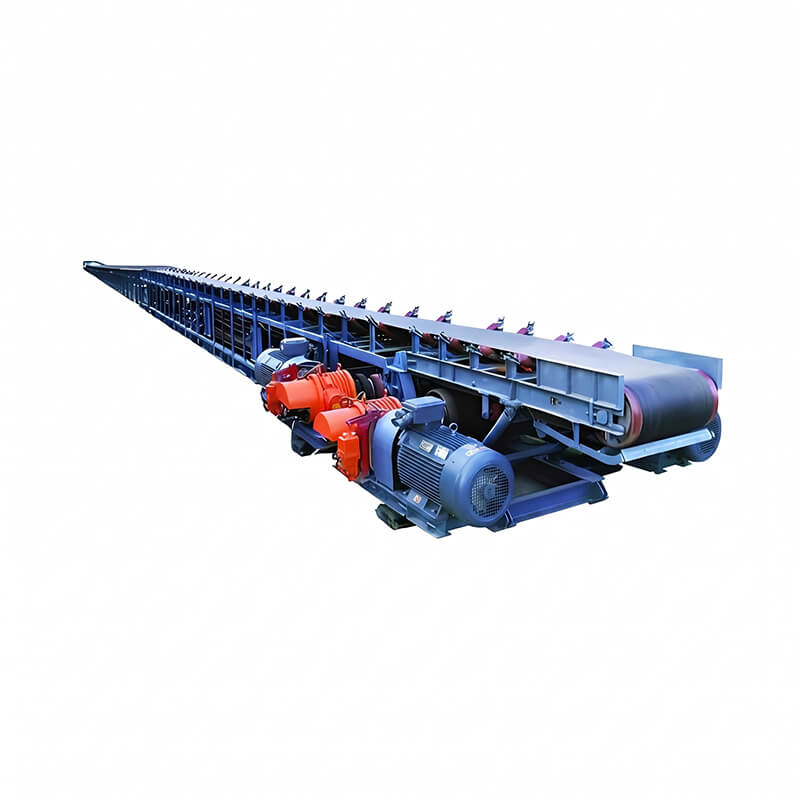

1. TD75 Belt Conveyor

Model TD75 Fixed Belt Conveyor (General Standard Type)

• Belt Width: 500, 650, 800, 1000, 1200, 1400 mm
• Incline Angle: ≤18° (Varies depending on material properties)Features: Mature design, standardized components, low cost, durable
• Features: Mature design, standardized components, low cost, durable
• Applications: Long-distance fixed conveying in factories, mines, cement plants, and power plants

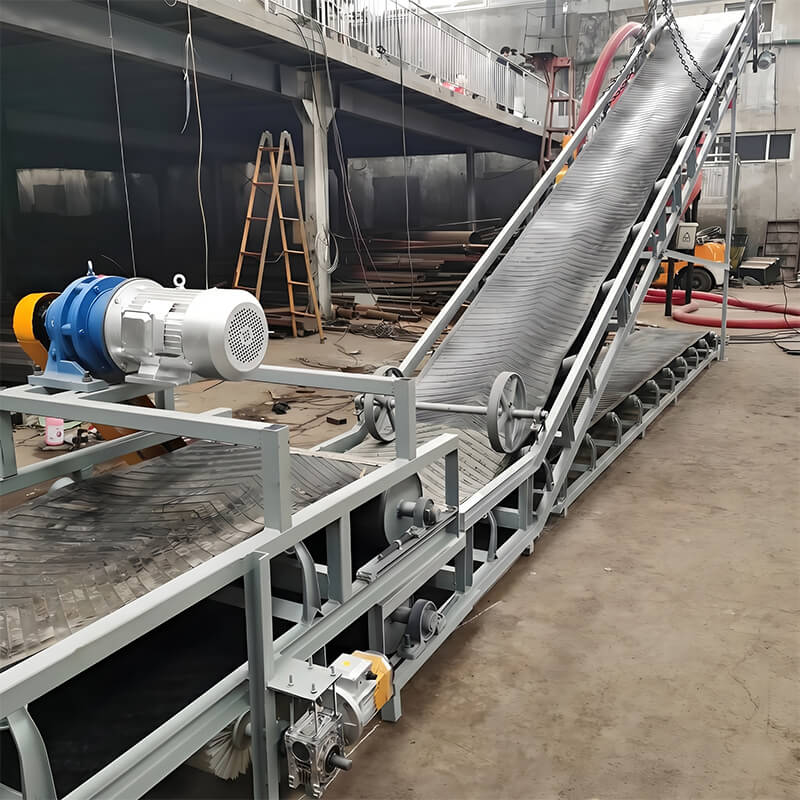

2. DY Mobile Belt Conveyor

Model DY Mobile Belt Conveyor (Mobile Loading & Unloading)

• Mobile and highly maneuverable, designed for loading, unloading, and stockpiling.
• Lifting Options: Manual Lift / Fixed Height
• Length: 3–15 m
• Features: Universal swivel wheels, easy mobility, plug-and-play operation.
• Applications: Ports, docks, grain silos, coal yards, and short-distance loading/unloading at construction sites.

3. DJ Large Inclination Belt Conveyor

DJ-Type High-Angle Corrugated Sidewall Belt Conveyor (High-Angle / Vertical Lifting)

• Features a sidewall-plus-cross-cleat structure, enabling conveyance at steep angles—even vertically at 90°.
• Inclination Angle: 30°–90°
• Advantages: Compact footprint, high lifting height, short process flow, and reduced civil engineering requirements.
• Applications: Scenarios involving limited site space or the need for high-angle lifting.
• Industries: Cement, Metallurgy, Chemicals, Grain.

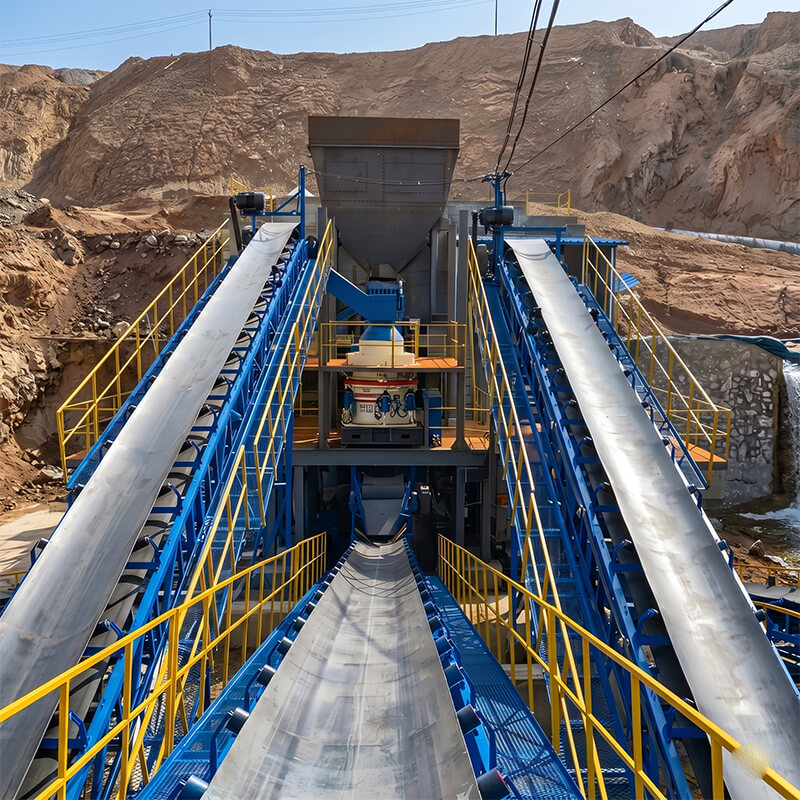

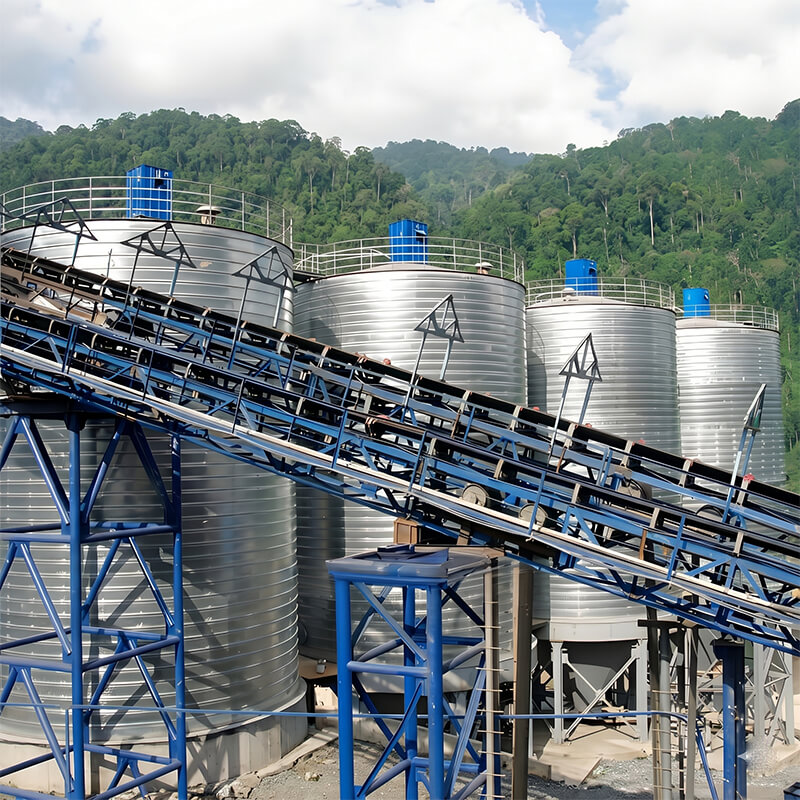

V. Application

• Mining
• Coal
• Cement Building Materials
• Port & Terminal
• Grain & Feed
• Power Plant
• Chemical Industry
• Construction Site

VI. Selection Guide

For equipment selection, please provide:
1. Material Name, Particle Size, Moisture Content, and Bulk Density
2. Conveying Capacity (t/h)
3. Conveying Length / Lifting Height (m)
4. Inclination: Horizontal / Inclined (Angle)
5. Installation Type: Fixed / Mobile / Indoor / Outdoor
6. Feeding and Discharging Locations and Requirements

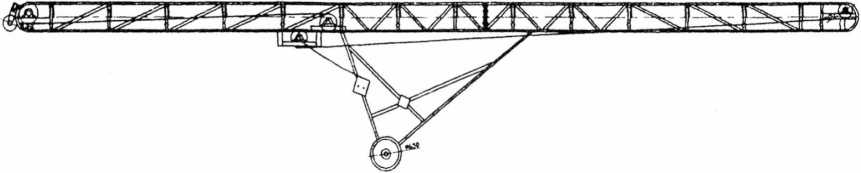

Example of the General Arrangement Drawing for the DY-Type Mobile Belt Conveyor:

Contact us for customized belt conveyor solutions—including length, width, and inclination.
